Rooster Booster Standard lighting system
Select 1, 2 or 3, 2.2-watt bulbs and this unit is ideal for small houses up to 8ft x 4ft (2.5m x 1.2m).

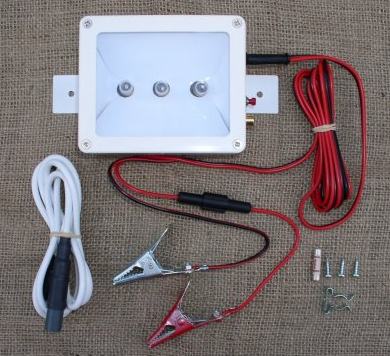

Consisting of: -
- Timer controller complete with 3-amp fused battery lead.
- 3 off 2.2 watt filament bulbs.
- 9-volt backup battery, LED indicator and push button.
- Light sensor assembly.
- Light sensor mounting clip.
- Spare 3 amp fuse.
- 1 spare bulb.
- Fixing screws.
- Operating instruction
How long between charges
30Ah Battery, 6 days. 85Ah Battery, 18 days. 120Ah Battery, 26 days
.Overall dimensions

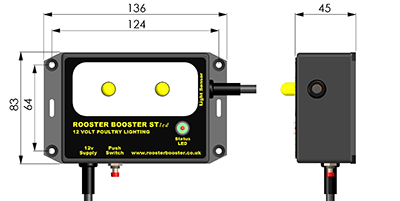

Below is a diagram showing the size of the Rooster Booster Standard controller.
Labelled diagram

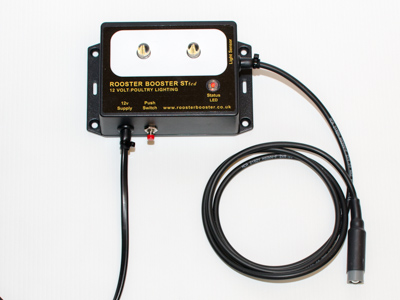

Diagram showing the various parts of the Rooster Booster Standard controller.
- The three MES 12-volt bulbs are each rated at 2.2-watts and the number fitted can be selected to provide the appropriate light output for the size of hen house.
- The power lead has 2 battery clips fitted to the ends. The red positive (+) lead has an in-line fuse holder with a 3-Amp fuse fitted as standard.
- The sensor lead has a light sensitive device at the end, which needs to be positioned so that it can monitor the daylight. It is also important to place it in a relatively dry location.
- The push button is used to interact with the timer if desired. (For further information on this please refer to the user guide.)
- The LED flashes to indicate that the unit is operating. Also it provides feedback on current status when used with the push button.
