8W/16W 12v fluorescent lamp Specification
24mm deep, Polarity protected with Integral switch
Using a high efficiency inverter, the fluorescent lamp produces very high levels of light for the power consumed. A recess at each end allows installation without lens removal, and the clip-on design means that tubes can be replaced without removing or dismantling the light. The switch is sunken into the lens to minimise height.
The fluorescent lamp is available in 8-Watt and twin 8-Watt (16-Watt) versions.

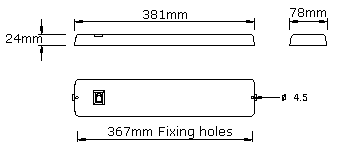

8W/12W 12v fluorescent lamp overall dimensions
|
SPECIFICATION
|
|||
|---|---|---|---|
|
Model No.
|
8W
|
16W
|
|
| Supply Voltage |
Vdc
|
12
|
12
|
| Voltage Range |
Vdc
|
10 to 15
|
10 to 15
|
| Current |
A
|
0.5
|
0.7
|
| Watts |
W
|
8W
|
16W
|
| Lumens |
Lm
|
350
|
600
|
| Frequency |
KHz
|
40
|
40
|
| Optimum Temp. |
C
|
20
|
|
| Temp. Range |
C
|
-10 to +40
|
|
| Weight |
Kg
|
0.28
|
|
Temperature and the state of your battery will have an effect on light out put and tube life.
AS a guide one 8-watt fluorescent lamp seems to be effective in hen houses up to 8 foot x 20 foot (2.4 metres x 6 Metres)

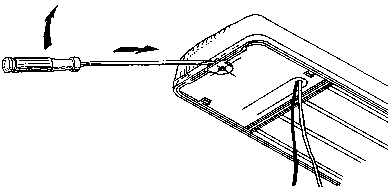

Changing the tubes
- Unclip the diffuser (retaining clips are positioned in the middle and at each end, take care not to crack the diffuser) using a small screwdriver to unclip the end away from the switch then the middle.
- Remove old tube and replace with new one.
- Clip the diffuser back on.
